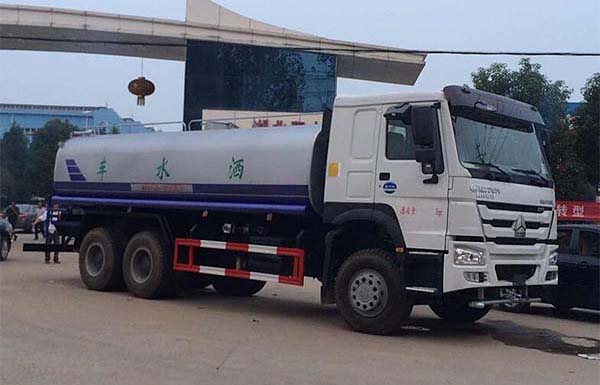

Sinotruk HOWO 18-ton water sprinkler adopts Sinotruk HOWO chassis, white half-row forward-flipping cab, Sinotruk 280 horsepower National Five engine, eight-speed gearbox, 4325+1300m double-axle wheelbase, 12.00R20 original steel wire tire, original ABS, with power steering, clutch booster, air brake, driving recorder.
Technical parameters of the complete vehicle of the heavy-duty truck Haowo 18 ton sprinkler truck |
Tank volume 18 cubic tons, sprinkler width 15 meters |
Water cannon with a lift of 30 meters and a vertical suction of 7 meters |
Water pump flow rate 60 cubic meters/hour, water pump head 120 meters |
Total mass 25000 (kg) rated load mass 13700 (kg) |
Curb weight 11170 (kg), external dimensions 9.8,9.6X2.5X3.25m |
Tank size 6.2 x 2.3 x 1.5m, with 3 passengers allowed (person) |
Technical parameters of chassis for heavy-duty truck Haowo 18 ton sprinkler truck |
Chassis name: CNHTC Haowo Chassis model: 2L125/N434/E1 |
3 axles and 11 tires (including spare tire) |
Wheelbase (m m m 4325+1300 tire size 12.00 |
Transmission 8-speed front and rear axles 5/10 tons |
Fuel type: Diesel brake, air brake |
Emission standards GB17691-2005 National V, GB3847-2005 |
Engine model engine enterprise displacement (ml) horsepower |
D10.28-50 Heavy Duty Truck 9726 280 |
