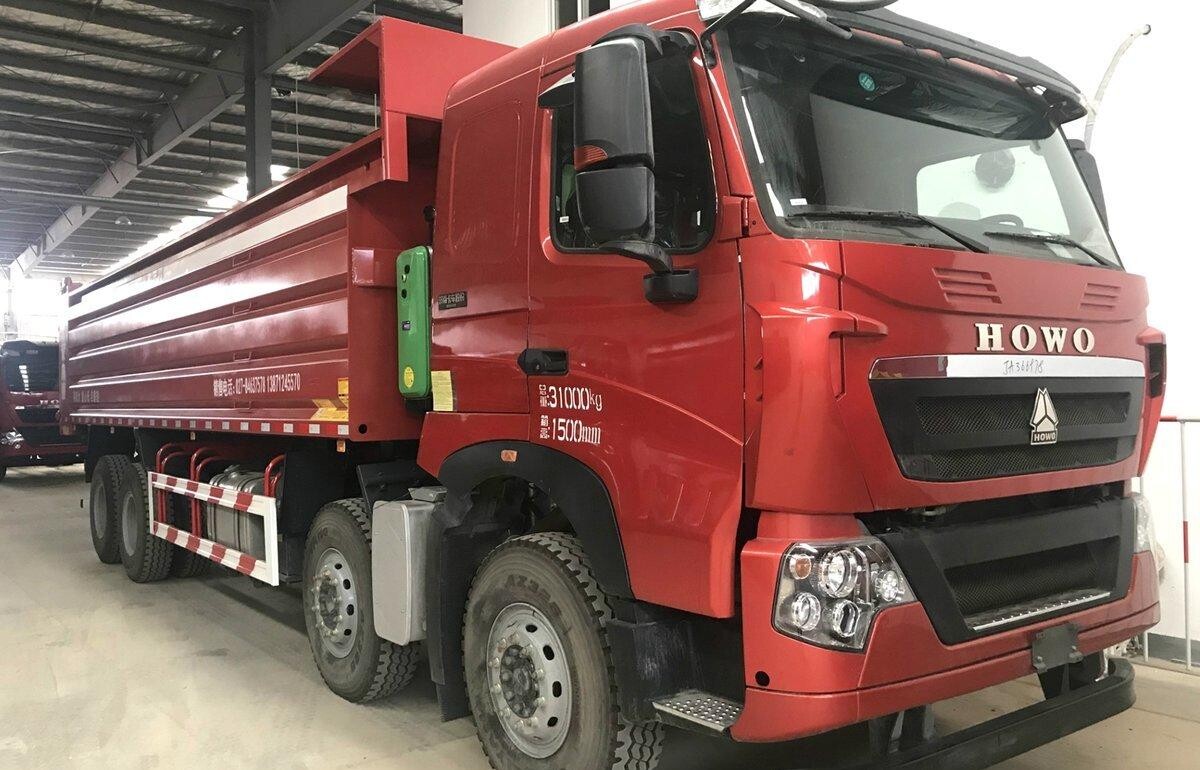

This model is equipped with a 440 horsepower engine, providing powerful power output. Its 8X4 drive form and 8.5-meter dump truck size make it very suitable for the transportation needs of goods in construction sites, mines, and other places, especially for scenarios that require self dumping function. The vehicle has a large load capacity and can meet the transportation needs of large goods; At the same time, its self dumping design greatly improves loading and unloading efficiency, reducing the labor intensity of operators. Equipped with advanced cab and safety features, it provides a good working environment for drivers.
driver license: | A1,A2,B2 | Announcement Model: | ZZ3317V466HE1 |
Drive type: | 8X4 | Wheelbase: | 1950+4600+1350mm |
engine: | Sinotruk MC11.44-50 | Gearbox: | Sinotruk HW19712C |
Rear axle ratio: | 5.45 | Body length: | 11.665m |
Body width: | 2.55 m | Ride height: | 3.49 m |
Front track: | 2022/2022mm | Rear track: | 1830/1830mm |
Vehicle weight: | 15.5 tons | Rated load: | 15.37 tons |
Total mass: | 31 tons | Tonnage level: | Heavy Truck |
Approach Angle: | 16 degrees | Departure angle: | 24 degrees |
Origin: | Shandong Jinan | Market segments: | Urban construction waste, road transportation |
Overall speed ratio: | 4.306 | Fuel Type: | diesel fuel |
Engine parameters |
|
|
|
engine model: | Sinotruk MC11.44-50 | Engine Brand: | Sinotruk |
Number of cylinders: | 6 cylinders | Fuel type: | diesel fuel |
Displacement: | 10.518L | Emission Standards: | National Five |
Maximum horsepower: | 440 hp | Maximum output power: | 324kW |
Maximum Torque: | 2100N路m | Maximum torque speed: | 1000-1400rpm |
Rated speed: | 1900rpm | Engine Type: | In-line, water-cooled, four-stroke, supercharged and intercooled |
Cargo box parameters |
|
|
|
Length of cargo box: | 8.5 m | Cargo box width: | 2.35 m |
Cargo box height: | 1.5 m | Cargo box form: | Self-unloading |
