This model is equipped with a 340 horsepower engine, which has good power performance. Its driving form is 6X4, which means there are three sets of driving wheels, two of which are steering wheels and one is driving wheels. This configuration allows the vehicle to have high load-bearing capacity and stability.
As a compressed garbage truck, it is mainly used for the collection and transportation of urban garbage. Through the vehicle's built-in compression mechanism, it can compress garbage, increase loading capacity, reduce transportation times, and thus improve work efficiency. The Huawei Chile garbage truck has a certain reputation in the industry, and its products are popular among users for their reliable quality and complete functions.
driver license: | A1,A2,B2 | Drive type: | 6X4 |
Wheelbase: | 4300+1350mm | type: | Compactor Garbage Truck |
Body size: | 10.36x2.5x3.35 m | Total mass: | 25 tons |
Rated quality: | 10.045 tons | Front overhang/rear overhang: | 1.43/2.925 m |
Front track/rear track: | Front track: 2015mm; Rear track: 1830mm | Fuel Type: | diesel fuel |
Engine parameters |
|
|
|
engine model: | Sinotruk MC07.34-50 | Displacement: | 6.87L |
Maximum output power: | 248kW | Maximum horsepower: | 340 hp |
Emission Standards: | National Five | Fuel type: | diesel fuel |
Rated speed: | 2300rpm |
|
|
Upload parameters |
|
|
|
Vehicle announcement: | SGZ5250ZYSZZ5T5 | Top brand: | Huawei Chile |
Gearbox parameters |
|
|
|
Gearbox Model: | Sinotruk 10 gear | Number of gears: | 10 levels |
Chassis parameters |
|
|
|

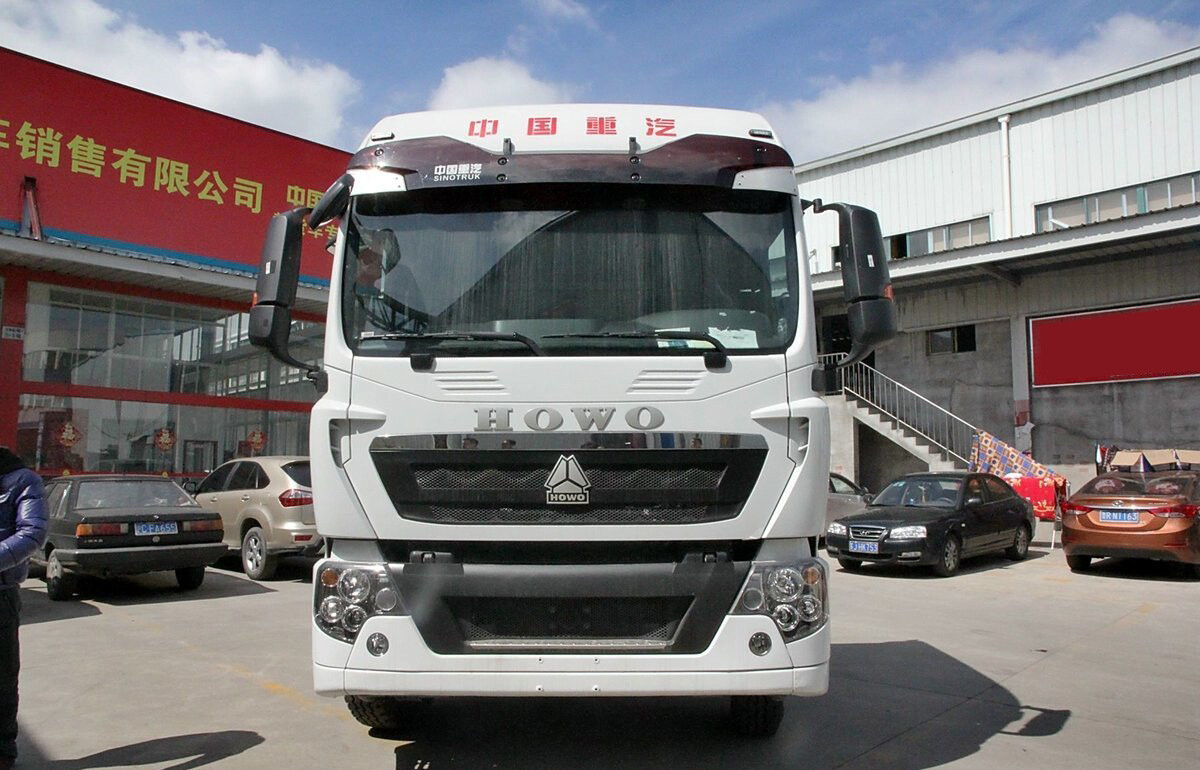

Chassis Brand: | Sinotruk HOWO (HOWO) | Chassis series: | HOWO T5G |
Chassis Model: | ZZ1257N464GE1 | Rear Axle Description: | Loading weight: 18000kg |
Number of springs: | 11/10,3/10,3/4,3/- |
|
|
