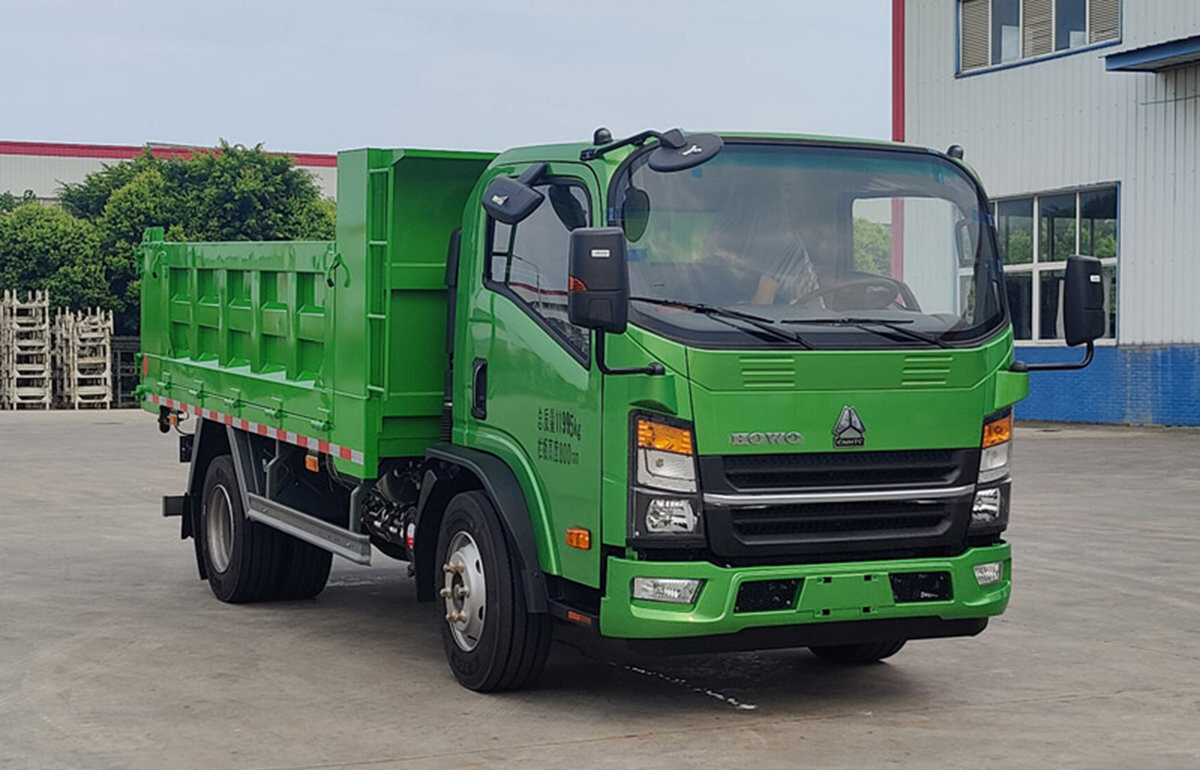

Sinotruk HOWO Hanjiang 140HP 4X2 3.8m dump truck
Powerful: Equipped with a 140 horsepower engine, it has excellent power performance and climbing ability.
High load-bearing capacity: The cargo box and frame made of high-strength steel have a large load-bearing capacity.
Comfortable cab: Equipped with a comfortable and spacious cab, providing a good driving and riding environment for the driver.
Safe and reliable: Equipped with advanced braking systems and stabilizing devices, ensuring driving safety.
Convenient maintenance: The design takes into account the need for easy maintenance, reducing repair time.
PRODUCT DESCRIPTION



This car is built on the China National Heavy Duty Truck HOWO series platform, with high load-bearing capacity and reliability, suitable for cargo transportation under various working conditions, especially in construction sites, road construction and other scenarios.
The main features of this car include:
Powerful: Equipped with a 140 horsepower engine, it has excellent power performance and climbing ability.
High load-bearing capacity: The cargo box and frame made of high-strength steel have a large load-bearing capacity.
Comfortable cab: Equipped with a comfortable and spacious cab, providing a good driving and riding environment for the driver.
Safe and reliable: Equipped with advanced braking systems and stabilizing devices, ensuring driving safety.
Convenient maintenance: The design takes into account the need for easy maintenance, reducing repair time.


driver license:A1,A2,B2Announcement Model:ZZ3124G301CFH1
Drive type:4X2Wheelbase:3000mm
engine:Weichai WP2.3Q140E62Gearbox:Wanliyang WLY8GS46
Rear axle ratio:5.286Body length:5.825 m
Body width:2.26 mRide height:2.275 m
Front track:1690mmRear track:1595mm
Vehicle weight:4.3 tonsRated load:7.565 tons
Total mass:11.995 tonsTonnage level:Medium Card
Approach Angle:17 degreesDeparture angle:17 degrees
Origin:SHANDONGFuel Type:diesel fuel
Engine parameters


engine model:Weichai WP2.3Q140E62Engine Brand:Weichai
Number of cylinders:4 cylindersFuel type:diesel fuel
Displacement:2.289LEmission Standards:National VI
Maximum horsepower:140 HPMaximum output power:103kW
Maximum Torque:320N路mMaximum torque speed:1600-2400rpm
Rated speed:3200rpmEngine Type:High pressure common rail
Cargo box parameters


Length of cargo box:3.8 mCargo box width:2.1 m
Cargo box height:0.8mCargo box form:Self-unloading
Cab parameters


Cab width:1880mmNumber of passengers allowed:3 people
Gearbox parameters


Gearbox Model:Wanliyang WLY8GS46Gearbox brand:Wanliyang
Forward gears:8 gearsReverse gear number:2
Shifting method:Manual

tank


Fuel tank material:Aluminum AlloyFuel tank capacity:90L
Chassis parameters


Permissible load on front axle:4240kgPermissible load on rear axle:7755kg
Speed :5.286Number of springs:11/11+9
tire


Tire specifications:245/70R17.5 18PRNumber of tires:6




Specification
Specification
  • Mining Industry
  • Dump truck
  • Concrete mixer truck
  •  Construction industry
  • Bulk cargo transportation
  • Long distance freight
