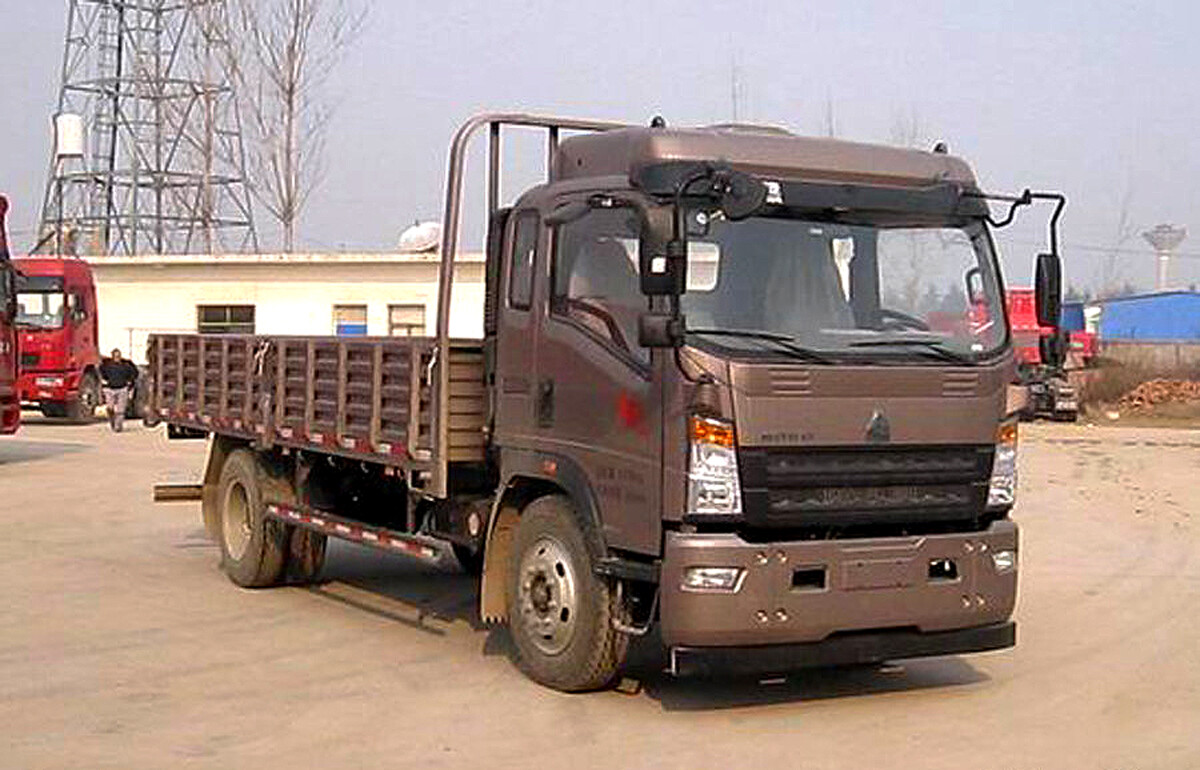

This model is equipped with a 168 horsepower engine, four-wheel drive, a wheelbase of 421mm, and a body length of 5.2 meters. It is mainly used for transporting and unloading goods. It has high load-bearing capacity and stability, and is suitable for various complex road conditions. In addition, the car is equipped with advanced emission control technology to meet environmental requirements. As a reliable commercial vehicle, the China National Heavy Duty Truck HOWO Command series enjoys a high reputation in both domestic and international markets.
driver license: | A1,A2,B2 | Announcement Model: | ZZ3167G421CE1 |
Drive type: | 4X2 | Wheelbase: | 4200mm |
engine: | Foton Cummins ISF3.8s5168 | Gearbox: | Sinotruk HW90510C |
Body length: | 7.445 m | Body width: | 2.495 m |
Ride height: | 2.95 m | Front track: | 1750mm |
Rear track: | 1700mm | Vehicle weight: | 5.675 tons |
Rated load: | 9.995 tons | Total mass: | 15.8 tons |
Tonnage level: | Light Truck | Approach Angle: | 20 degrees |
Departure angle: | 18 degrees | Origin: | Shandong Jinan |
Market segments: | Engineering transportation | Remark: | Power steering, clutch assist, MP3, optional air conditioning |
Fuel Type: | diesel fuel |
|
|
Engine parameters |
|
|
|
engine model: | Foton Cummins ISF3.8s5168 | Engine Brand: | Foton Cummins |
Number of cylinders: | 4 cylinders | Fuel type: | diesel fuel |
Displacement: | 3.76L | Emission Standards: | National Five |
Maximum horsepower: | 168 hp | Maximum output power: | 125kW |
Maximum Torque: | 592N路m | Maximum torque speed: | 1300-1700rpm |
Rated speed: | 2600rpm | Engine Type: | Turbocharged intercooler Bosch high pressure common rail high pressure direct injection SCR |
Cargo box parameters |
|
|
|
Length of cargo box: | 5.2 m | Cargo box width: | 2.3 m |
Cargo box height: | 0.8m | Cargo box form: | Self-unloading |
Hydraulic cylinder brand model: | 160 |
|
|
Upload parameters |
|
|
|
Lifting form: | Front top |
|
|
Cab parameters |
|
|
|
Cab: | Half row | Cab width: | 2080mm |
Gearbox parameters |
|
|
|
Gearbox Model: | Sinotruk HW90510C | Gearbox brand: | Sinotruk |
Forward gears: | 10 levels | Reverse gear number: | 2 |
Chassis parameters |
|
|
|
Frame size: | 250(8+5)mm | Front axle description: | 3.2T |
Permissible load on front axle: | 5600kg | Rear Axle Description: | 8T rear axle |
Permissible load on rear axle: | 10200kg | Number of springs: | 11/12+9 |
tire |
|
|
|
Tire specifications: | 9.00R20 | Number of tires: | 6 |
