Detailed display of various models of heavy-duty trucks

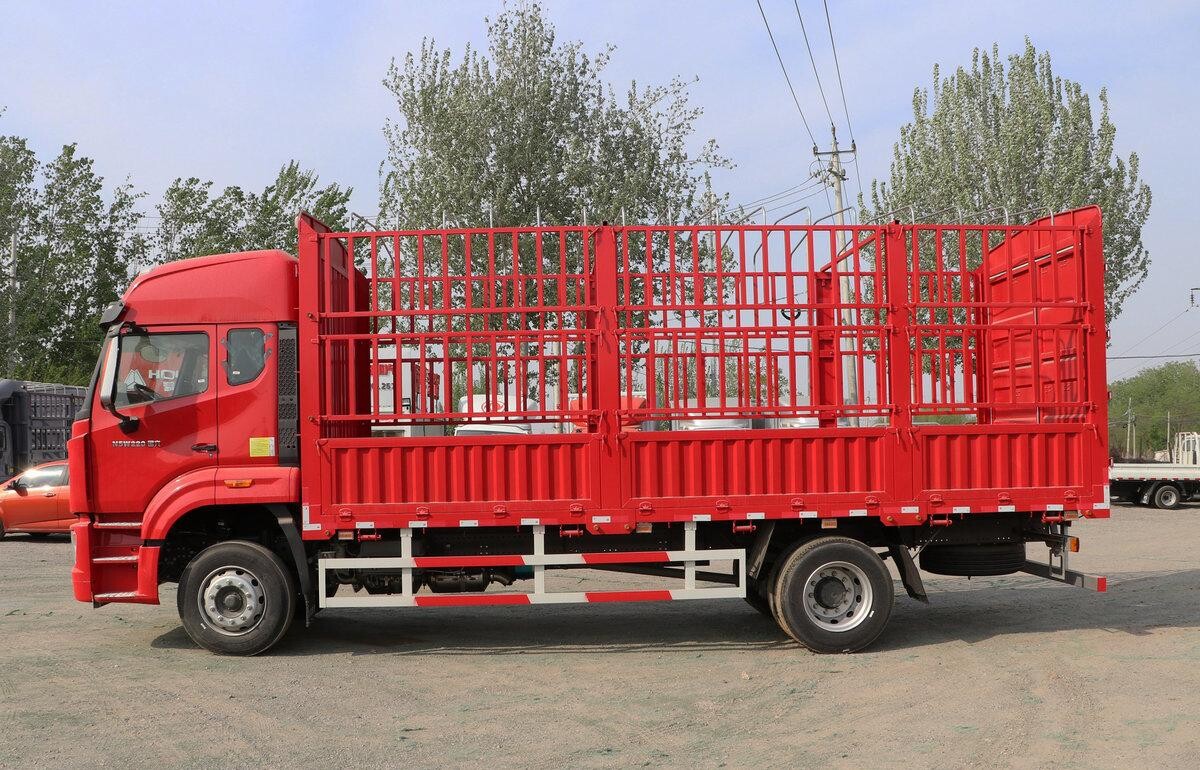

HOWO N5W medium truck 6.75m fence truck
The car adopts a 4X2 drive form and is equipped with advanced engines and transmission systems, which have high load-bearing capacity and reliability. At the same time, its cab design is user-friendly, providing good comfort and operational convenience. This model is widely used in urban logistics, urban-rural transportation and other fields, and is one of the ideal choices for users to transport goods.
PRODUCT DESCRIPTION

The car adopts a 4X2 drive form and is equipped with advanced engines and transmission systems, which have high load-bearing capacity and reliability. At the same time, its cab design is user-friendly, providing good comfort and operational convenience. This model is widely used in urban logistics, urban-rural transportation and other fields, and is one of the ideal choices for users to transport goods.

Box length level:6.8 mengine:Sinotruk MC07.29-61
Gearbox:Sinotruk HW11708STCRear axle ratio:3.91
Body length:9 metersBody width:2.55 m
Ride height:3.68 mFront track:1956mm
Rear track:1860mmVehicle weight:7.35 tons
Rated load:10.52 tonsTotal mass:18 tons
Maximum speed:89KM/hOrigin:Jining, Shandong
Tonnage level:Medium Carddriver license:A1,A2,B2
Approach Angle:17 degreesDeparture angle:13 degrees
Front overhang/rear overhang:1.55/2.35 mFuel Type:diesel fuel
Engine parameters


engine model:Sinotruk MC07.29-61Engine Brand:Sinotruk
Engine common name:Sinotruk 6 cylinderNumber of cylinders:6 cylinders
Fuel type:diesel fuelCylinder arrangement:In-line
Displacement:6.87LEmission Standards:National VI
Maximum output power:213kwMaximum horsepower:290 hp
Maximum Torque:1200N路mMaximum torque speed:1200-1800RPM
Rated speed:2200RPM

Cargo box parameters


Cargo box form:Barn typeLength of cargo box:6.75 m
Cargo box width:2.46 m

Cab parameters


Cab width:2280mmNumber of passengers allowed:2 people
Number of Seat Rows:Half row

Gearbox parameters


Gearbox Model:Sinotruk HW11708STCGearbox brand:Sinotruk
Shifting method:ManualForward gears:8 gears
Reverse gear number:2

tank


Fuel tank capacity:600L

Chassis parameters


Front axle description:1094 self-adjusting arm front axle (drum)Permissible load on front axle:6500KG
Rear Axle Description:MCJ09BGY self-adjusting arm single rear axle (drum)Permissible load on rear axle:11500KG
Speed:3.91Number of springs:7/7+3
tire


Tire specifications:275/80R22.5 18PRNumber of tires:6
